Protective Aircraft Coatings and the Hidden Complexity of Radome Systems
Why Radomes Matter to Every Flight

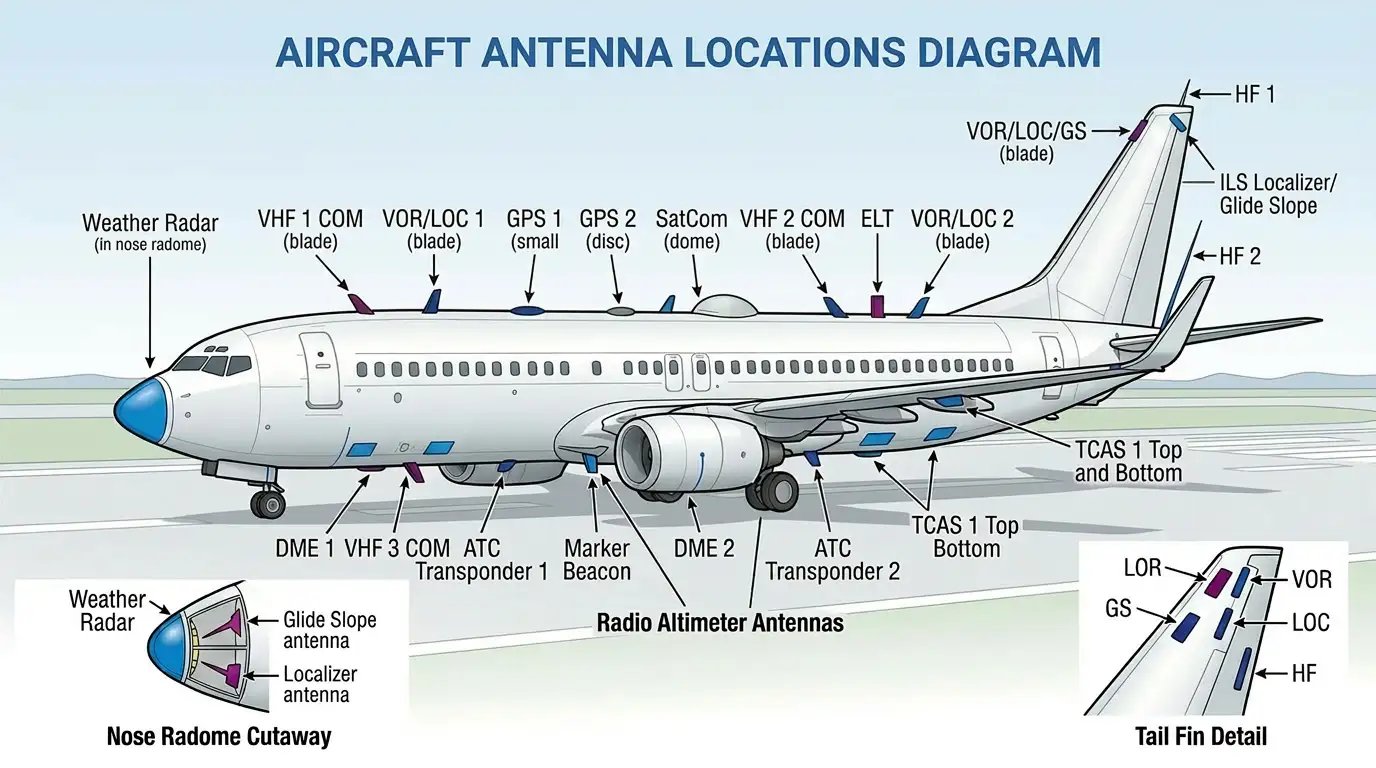

The smooth nose and “humps” along an aircraft’s fuselage do far more than shape the airframe. These radomes shield the antennas that power radar, navigation, and high‑frequency communications—systems crews rely on for situational awareness, routing, and safety on every flight. To do their job, radomes must remain electromagnetically “invisible” so radar and communication signals pass through without distortion, even in heavy weather and at cruise speeds.
Modern radomes are also part of the aircraft’s electrical safety system. They need to shed static electricity, provide a controlled path for lightning strikes through diverter systems, and tie into the aircraft’s bonding network so structures stay at the same electrical potential. When those pathways are compromised, operators can see everything from nuisance write‑ups and intermittent radar anomalies to costly unplanned maintenance and even electric shocks
The Unseen Hardware Inside the Radome

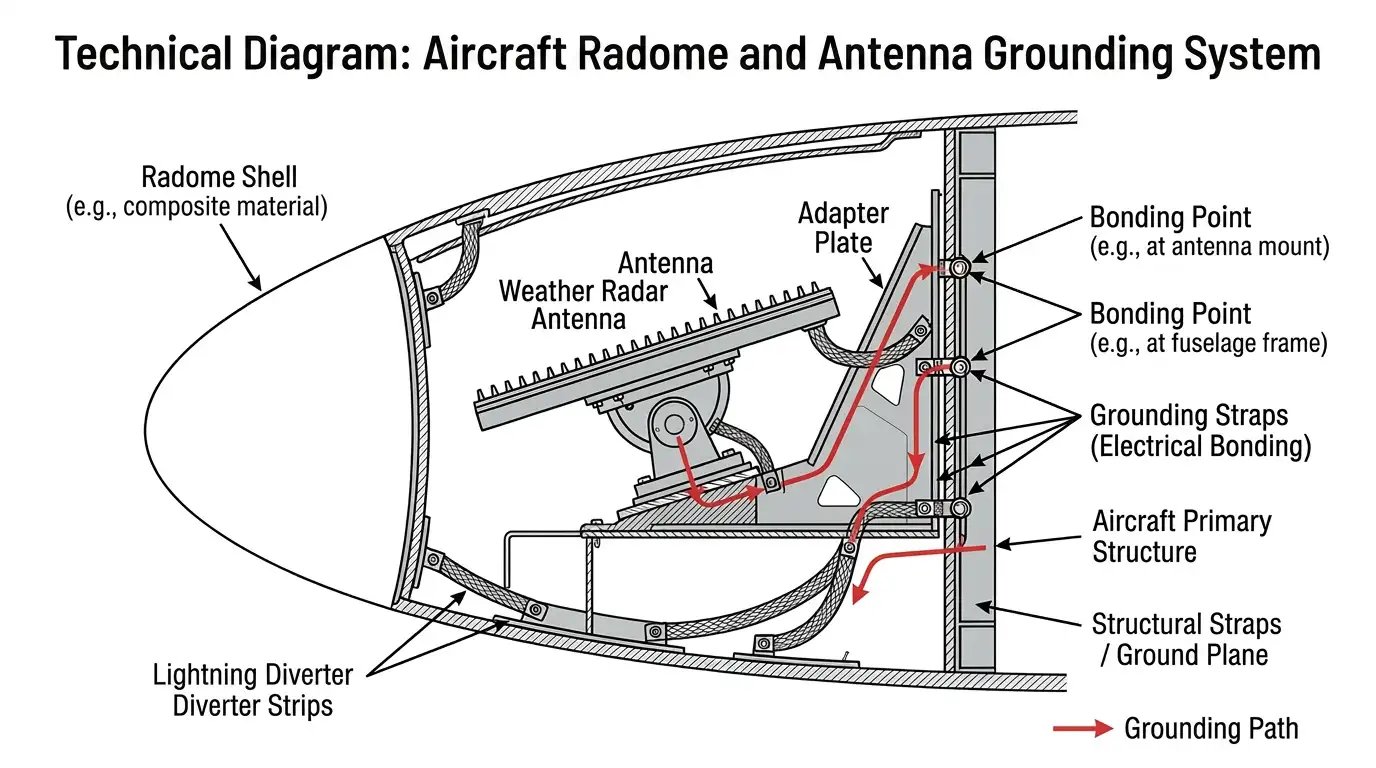

Beneath the radome surface sits a dense cluster of adapter plates, bonding points, antenna collars, and electronic boxes that connect avionics to the outside world. These components must manage both signal performance and electrical continuity in a confined, harsh environment.
Because dissimilar metals and composite structures meet at these interfaces, they are highly vulnerable to galvanic corrosion and electrostatic buildup. If corrosion creeps into a grounding connection or bonding strap, it can change resistance, alter radar calibration, or disrupt the path for static and lightning currents—issues that often show up later as intermittent faults, inspection findings, or repeated MEL items rather than obvious “one and done” failures.
Why Corrosion Control Here Is So Difficult
The radome zone is constantly exposed to moisture, contaminants and rapidly changing temperatures. As a result, it is one of the most demanding corrosion‑control areas on the aircraft. Even minor degradation at a bonding point can affect radar transmissivity or increase the likelihood of arcing, driving more frequent rework and component replacement.
For OEMs and MROs, the challenge is balancing two goals that can seem at odds:
- Protecting sensitive interfaces from corrosion, chemicals, and wear
- Preserving the exact electrical properties needed for grounding and signal integrity
This is where specialized insulating coatings become critical to aircraft radome corrosion protection.
Common Radome Corrosion and Bonding Issues
From a maintenance perspective, several patterns appear again and again around radome assemblies:
- Corroded adapter plates at the radome mounting ring
Corrosion at this interface can increase resistance and drive out‑of‑tolerance bonding measurements, often discovered during heavy checks or after lightning‑strike inspections. - Pitting and discoloration around antenna collars
Wherever dissimilar metals meet and moisture is trapped—such as antenna collars and fasteners—galvanic corrosion can start as subtle staining and progress to pitting and material loss. - Degraded bonding jumpers and hardware
Damaged or missing protective coatings on bonding jumpers and attachment points can lead to intermittent static discharge paths and radar anomalies that are time‑consuming to troubleshoot. - Hidden corrosion under sealants or tape
In some cases, corrosion advances under legacy sealants or tape, remaining out of sight until components are removed or fail inspection.
Each of these issues is easier and less expensive to address proactively—with compatible protective coatings applied during manufacturing or heavy maintenance—than to chase later as recurring operational problems.
Nycote Coatings as a System Enabler
For more than six decades, Nycote coatings have been used as a protective layer in these high‑consequence areas. Nycote’s liquid nylon‑epoxy chemistry creates a thin, pinhole‑free barrier that seals metals and composites against corrosion, environmental attack, and unwanted conductivity, without adding unnecessary weight or bulk.
Because the formulations are clear and tintable, they support visual inspection and quality control. The underlying surface remains visible through the coating, while added color provides an immediate visual marker that a component has been treated and is properly protected—especially useful for maintenance teams verifying that work instructions have been followed in congested radome areas.

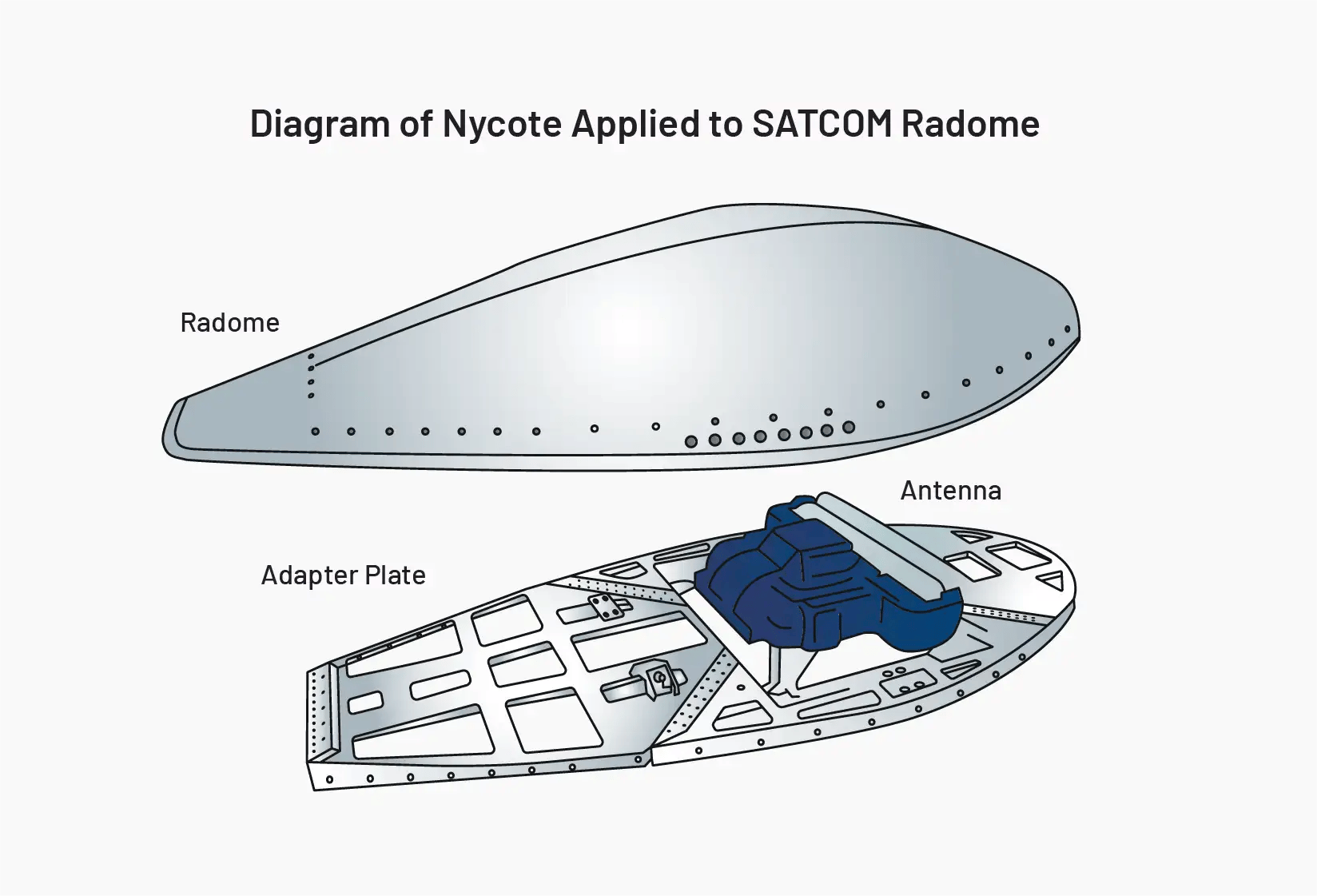

Applied to radome adapter plates, bonding points, and antenna collars, Nycote helps prevent galvanic reactions while maintaining the controlled resistance required for grounding stability and static dissipation. The encapsulating film remains flexible under vibration and rapid temperature swings, which is why Nycote products are specified by major aircraft and radome manufacturers across commercial, defense, and business aviation platforms.
Focus Products for Radome and Bonding Applications
Within Nycote’s aerospace coating portfolio, three products are commonly used in and around radome and bonding assemblies: Nycote 7‑11, Nycote 88, and Nycote 99 EcoShield. Each is designed to address slightly different application and performance needs while maintaining the core benefits of corrosion protection and dielectric performance.
Nycote 7‑11: Proven Protection and Versatility
Nycote 7‑11 is a single‑component, nylon‑epoxy liquid coating that protects substrates from corrosion, electrical conduction, friction, and abrasion. It can be applied by spray, dip, brush, or roll and is compatible with many common aircraft materials and hardware configurations.
7‑11 resists aircraft fuels, oils, lubricants, phosphate‑ester hydraulic fluids, salt spray, and water, making it a practical choice in radome environments where chemical exposure is routine. It is available in clear and in custom tints, enabling visual confirmation that parts have been treated while still allowing inspectors to see the underlying surface and hardware.
Typical radome‑related uses include adapter plates, antenna collars, bonding lugs, and small brackets where a thin, uniform, and well‑characterized coating is required.
Nycote 88: Enhanced Durability for Demanding Areas
Nycote 88 is a two‑part nylon‑epoxy system engineered for exceptional durability in demanding environments. Its dual‑component formula offers a comfortable working window and cures to a tough, flexible film that provides strong barrier performance against corrosion, friction, and unwanted conductivity.
Where assemblies are exposed to higher mechanical wear, repeated handling, or abrasion—such as frequently accessed panels or high‑traffic maintenance zones—Nycote 88 can provide additional confidence in long‑term performance. Like 7‑11, it can be tinted so inspectors can quickly distinguish coated hardware and verify coverage in complex or congested assemblies.
Nycote 99 EcoShield: Next‑Generation Performance and Sustainability
Nycote 99 EcoShield builds on the trusted 7‑11 platform with updated performance and environmental characteristics. It is formulated to offer improved adhesion characteristics, extended shelf life, and a lower‑VOC, environmentally conscious composition that aligns with evolving regulatory and sustainability expectations.
Designed for harsh environments and a wide range of substrates, Nycote 99 EcoShield provides a resilient protective layer with strong chemical resistance and dielectric performance. Available in clear with custom tinting, it supports both traceability and visual inspection in critical bonding and grounding locations around radomes and other exterior antenna systems.
Safety, Reliability, and Lifecycle Cost
Radomes and their internal grounding assemblies are quiet enablers of safe, connected flight. They ensure that radar pulses, satellite links, and command signals move reliably between cockpit and sky. At each of those hidden connection points, protective coatings like Nycote’s support long‑term integrity of the structure and bonding network.
For operators, this translates into fewer corrosion‑related findings, fewer repeat maintenance items tied to elusive electrical issues, and more predictable avionics performance over the life of the aircraft. For OEMs and MROs, it provides a practical way to balance electrical performance requirements with the realities of corrosion control in one of the most challenging zones on the airframe.
