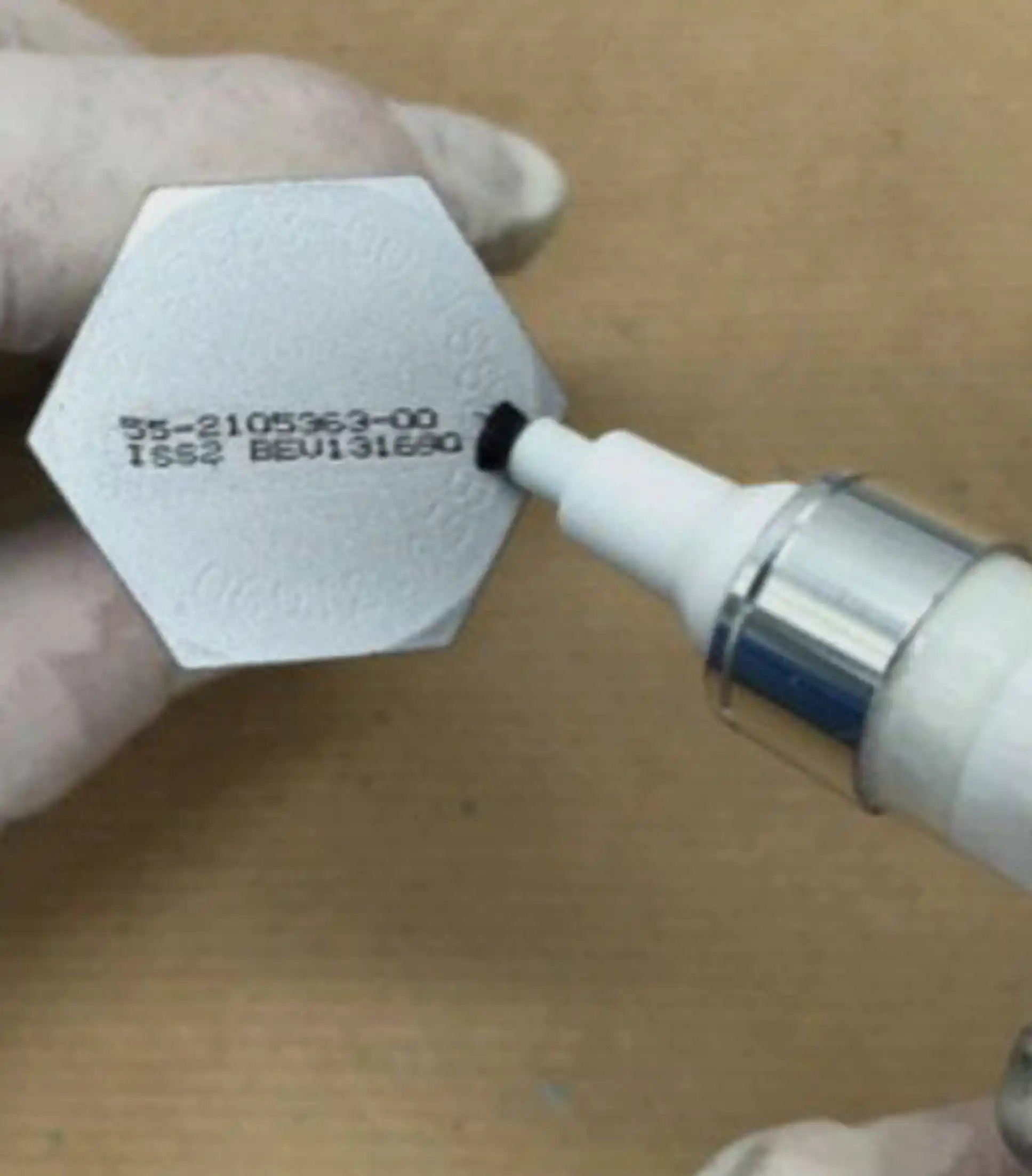

Nycotek Pen
The Nycotek™ Pen from Nycote Laboratories offers a convenient solution for applying corrosion-resistant coatings in tight or intricate spaces. Pre-filled with Nycote® 7-11 or Nycote® 99 Ecoshield, this disposable brush-top applicator ensures mess-free application and is ideal for touch-ups or small-scale projects. Each pen covers approximately two to four square feet and features a re-sealable airtight cap to maintain product integrity. With a 12-month shelf life, the Nycotek™ Pen is perfect for industries requiring precise application of protective coatings.
Precision Coating for Hard-to-Reach Areas
For small, precise jobs. The Nycotek™ applicator pen eliminates the mess and clean up of hazardous materials in addition to being easily disposable. It’s perfect for small or hard-to-reach areas, and one pen can cover two to four square feet. Easy-to-apply brush-on with the same corrosion-resistant advantages and tinting options as our Nycote® 7-11 or Nycote 99Ecoshield.
- Re-sealable airtight cap
- Eliminate mess and clean up
- Interchangeable brush heads
- 12-month shelf life
Product Details
Product Specifications
+| Physical properties Temperature Range from -70°F to +300°F (-57°C to 149°C) | Resin | Film |
|---|---|---|
| Viscosity: @ 72°F Zahn #2 Cup | 50-90 Seconds | N/A |
| Solids Content (non-vol.) | 19% | N/A |
| Flash Point: C.O.C | 70°F | N/A |
| Pounds Per Gallon @ 78°F | 7.4±0.2 lb. | N/A |
| Shelf Life @ 75°F | Six Months | N/A |
| Film Thickness, 1 Dipcoat | N/A | 0.5 mil |
| Coverage Per Gallon | 300 sq. ft. | N/A |
| Tack-Free Time, 50% RH @ 70°F | N/A | One Hour |
| Film Pencil Hardness | N/A | 1-H |
| Adhesion ASTM D4541-09 (pull-off stress) | N/A | 1200 p.s.i. at temperaturesof -70°F to +400°F (-57°C to +149°C) |
| Abrasion Resistance – (500 Gr. #17 wheel 100 cycles) | N/A | 3.0 mgm |
Fluid Resistance
+| Fluid Resistance – 30 days immersion @ 75°F | |
|---|---|
| JP-4 | Excellent |
| JP-5 | Excellent |
| JP-8 | Excellent |
| JP-10 | Excellent |
| Kerosene | Excellent |
| Gasoline | Excellent |
| Skydrol® | Excellent |
| 100% RH @120°F | Excellent |
| Distilled Water | Excellent |
| Tap Water | Excellent |
| Salt Spray | Excellent |
| 80% JP-4 Bacteria Laden Distilled Water | Excellent |
| H2O Immersion Composite (Submersed 7 days)** | Excellent |
| H2O Immersion Metal** | Excellent |
| Potassium Formate Submersion 24-hours | Excellent |
| Potassium Acetate Submersion 24-hours | Excellent |
Adhesion Characteristics
+| Magnesium Alloy | Excellent |
| Fiberglass | Excellent |
| Zinc Chromate Primed Aluminum | Excellent |
| Synthetic Rubber | Excellent |
| Metals / Composites / Fabrics | Excellent |
| Titanium | Excellent |
NSNs
+- 8010-01-670-2339
- Blue: 8010-01-670-2015
Storage Temperature Requirements
+- Store at 70°F (21°C). Keep away from fire or flame.
- Note: Ideal storage temperature is 70°F (21°C); acceptable storage range is between 65°F to 80°F (18.3°C to 26.7°C). Storing below 65°F (18.3°C) may cause cloudiness or gel; heat at 180°F (82°C) for two hours. This should restore the product to its normal liquid condition. If possible, re-verify viscosity with Zahn #2 cup (50-90 seconds).
- Nycote® 7-11 has a six-month shelf life. The container can be opened, applied and then re-sealed for a period of six months. The storage temperature should be maintained for the entire shelf life period. The container must always be stored in an upright position. If the storage temperature is not the ideal, nor within the acceptable range, the result may change the nature of the Nycote® product, as well as, causing cloudiness of the liquid. At all times, the product should be kept from freezing.
Cure Time Table
+Allow one to two hours to become tack free. In dry air allow 72 hours at room temperature for full cure or:
- Heat twelve hours @ 120°F (49°C)
- Heat eight hours @ 150°F (66°C)
- Heat four hours @ 180°F (82°C)
- Heat two hours @ 220°F (105°C)
- Cure film temperature range is -70°F to +400°F (-57°C to 204°C)
